Technical Specifications

E-bike

Battery: 840Wh battery

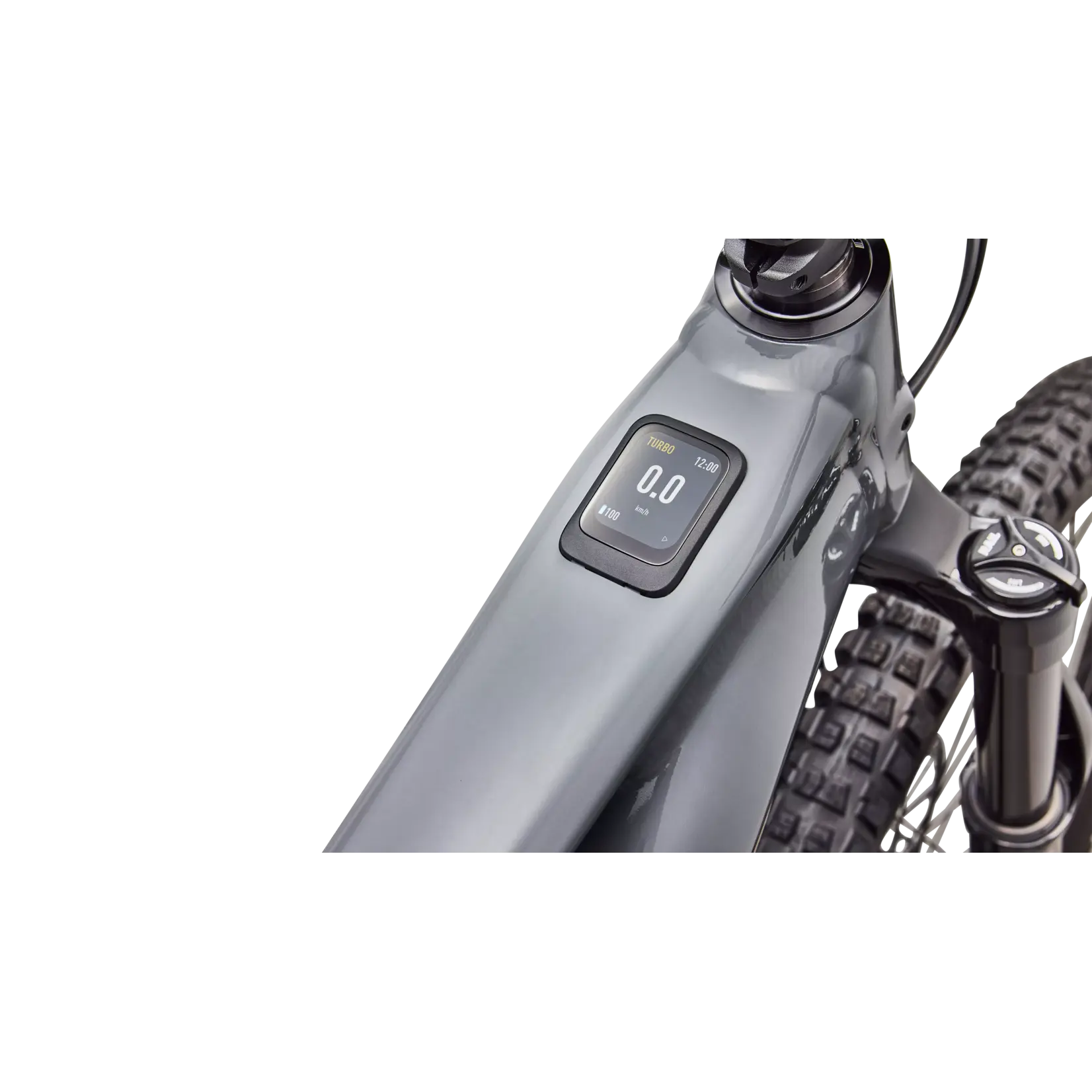

UI/Remote: Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
Motor: Specialized 3.1 Motor, 105Nm torque, 810W power
Charger: Specialized 4amp charger

Frameset

Seat Binder: Alloy, 38.6mm
Frame: Levo 4 alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel

Suspension

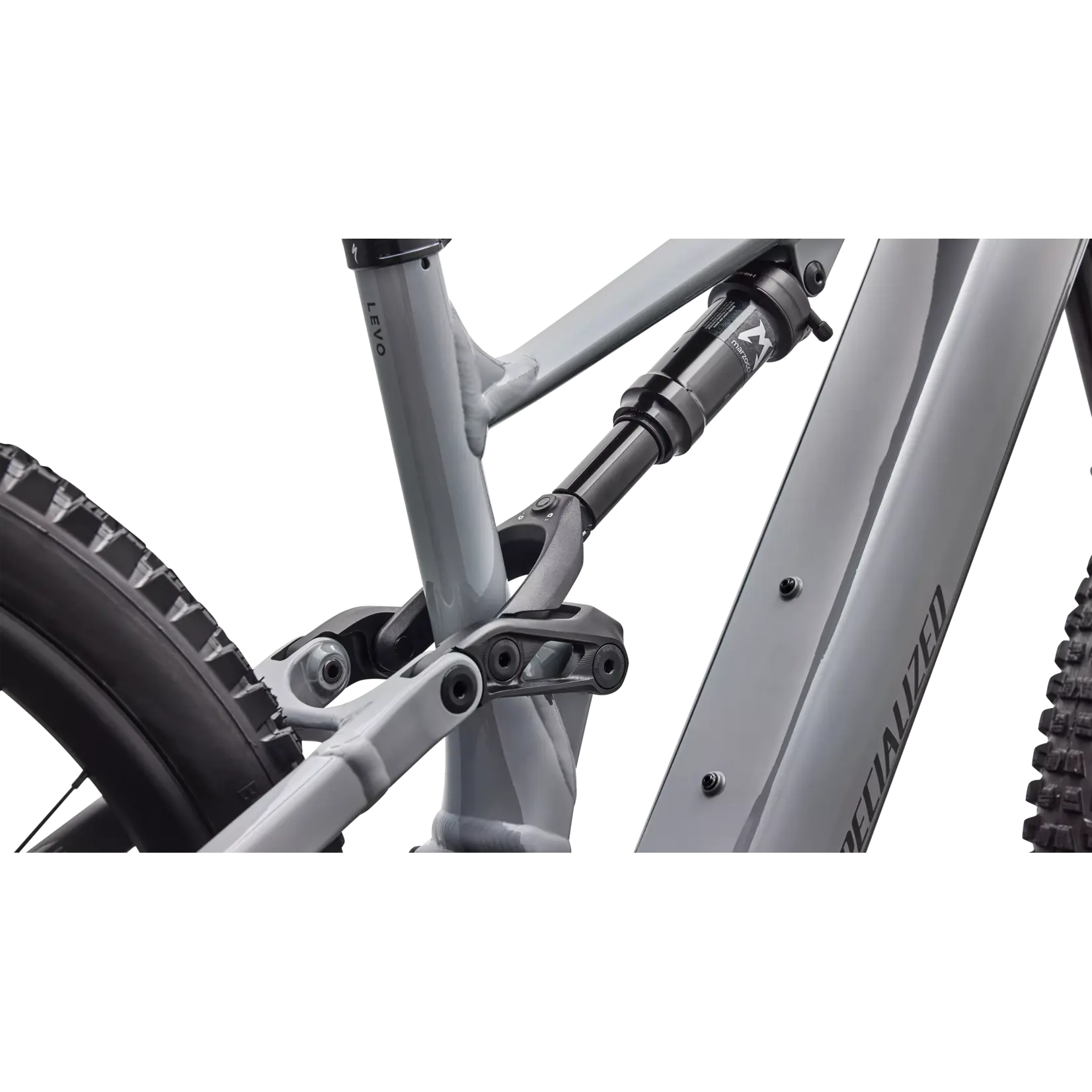

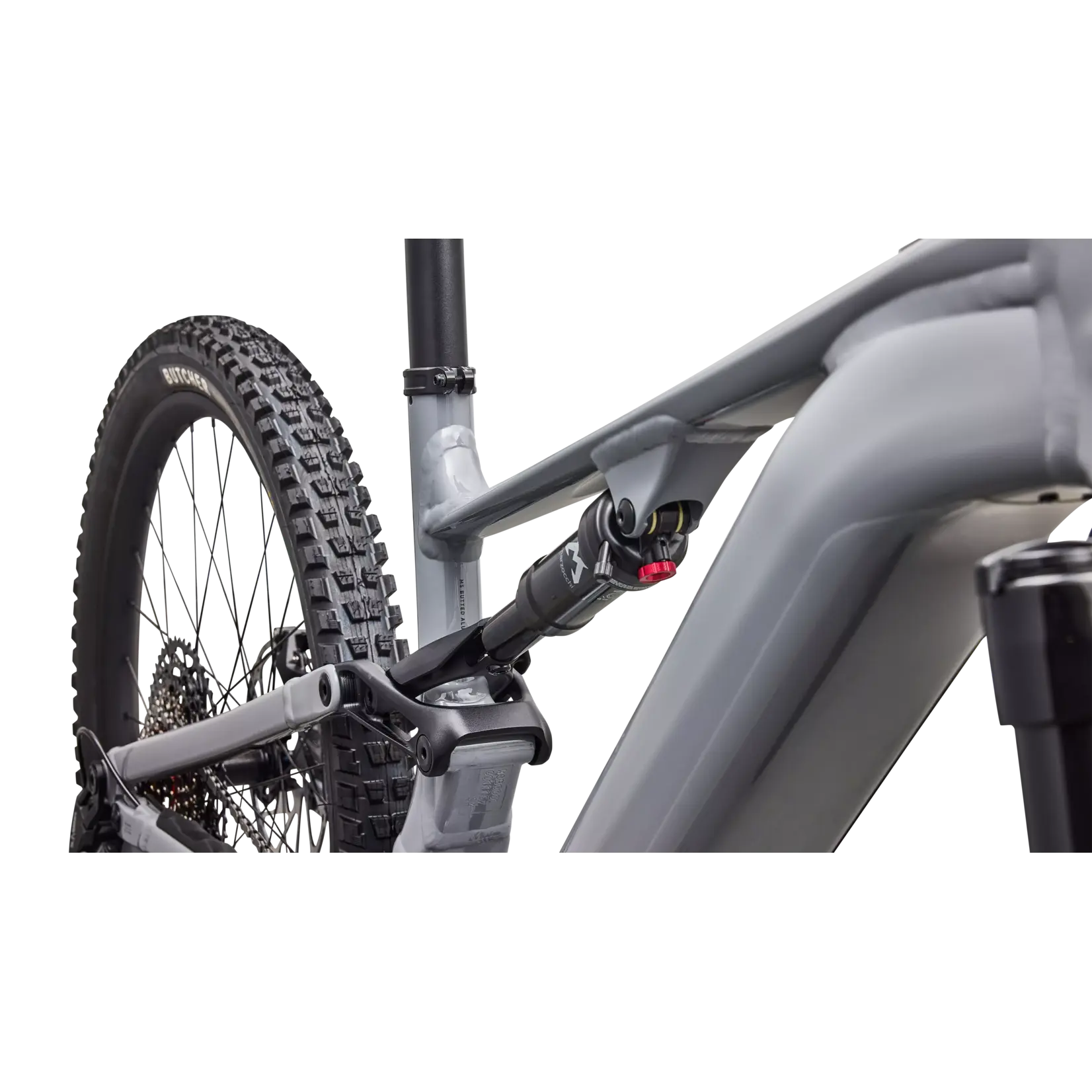

Rear Shock: Marzocchi Bomber Inline, Evol LV air sleeve, rebound adjust
Fork: Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression

Brakes

Front Brake: SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm rotor
Rear Brake: SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm rotor

Drivetrain

Cassette: SRAM 12-speed,10-52t
Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel
Chain: SRAM 70 Transmission 12-Speed Flattop Chain
Shift Levers: SRAM Eagle 70 T-Type, single click with MMX
Rear Derailleur: SRAM Eagle 70 Transmission, 12-speed, easy shift under load

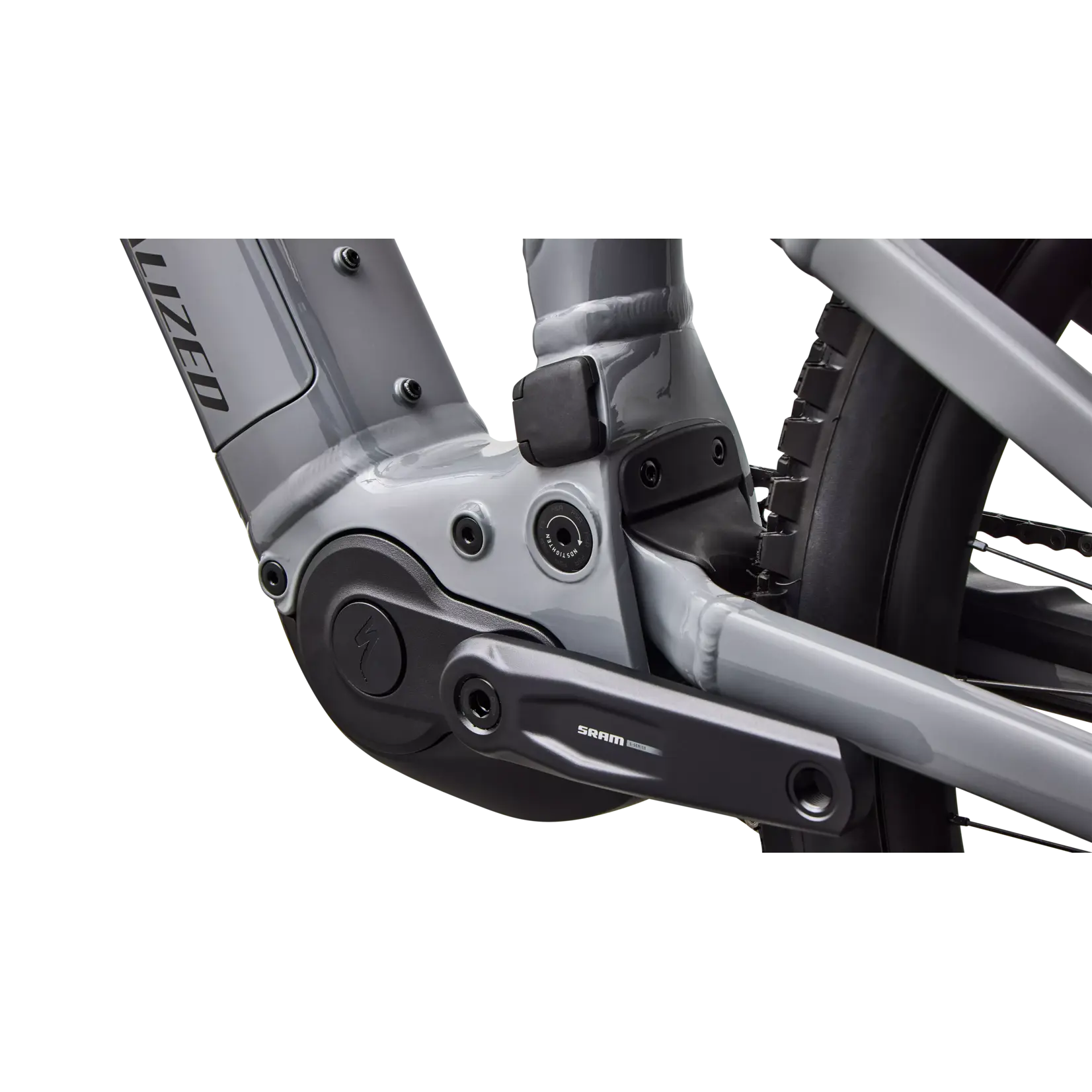

Crankset: SRAM S1000 Alloy crank, ISIS interface, 155mm length

Wheels & tires

Rear Tire: Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5x2.4
Front Tire: Butcher GRID Gravity Radial T9 TLR Enduro Tire 29x2.4
Spokes: DT Swiss Elemental
Front Hub: Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Rear Hub: Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12x148mm thru-axle, 32h, HG Steel Fhb
Rims: Specialized, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes: Standard, Presta Valve

Cockpit

Stem: Alloy Trail Stem, 35mm bar bore

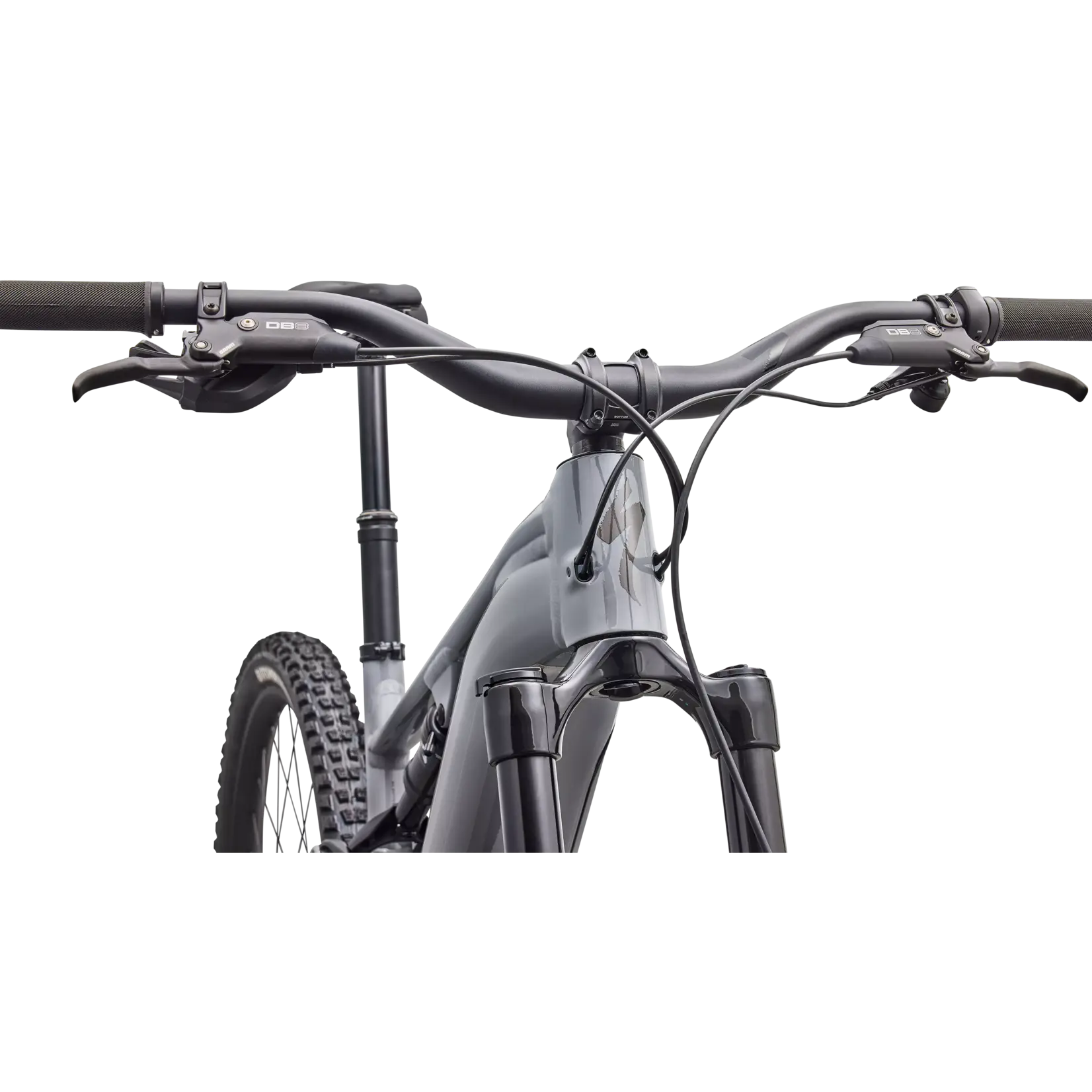

Handlebars: Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
Saddle: Body Geometry Bridge Saddle, steel rails
Grips: Specialized Trail Grips
SeatPost: TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4: 170mm, S5-S6: 200mm

Accessories

SWAT: SWAT Internal downtube storage

Product details

Weight: 26.0 kg (57 lb, 5.1 oz)
Weight Size: S4
