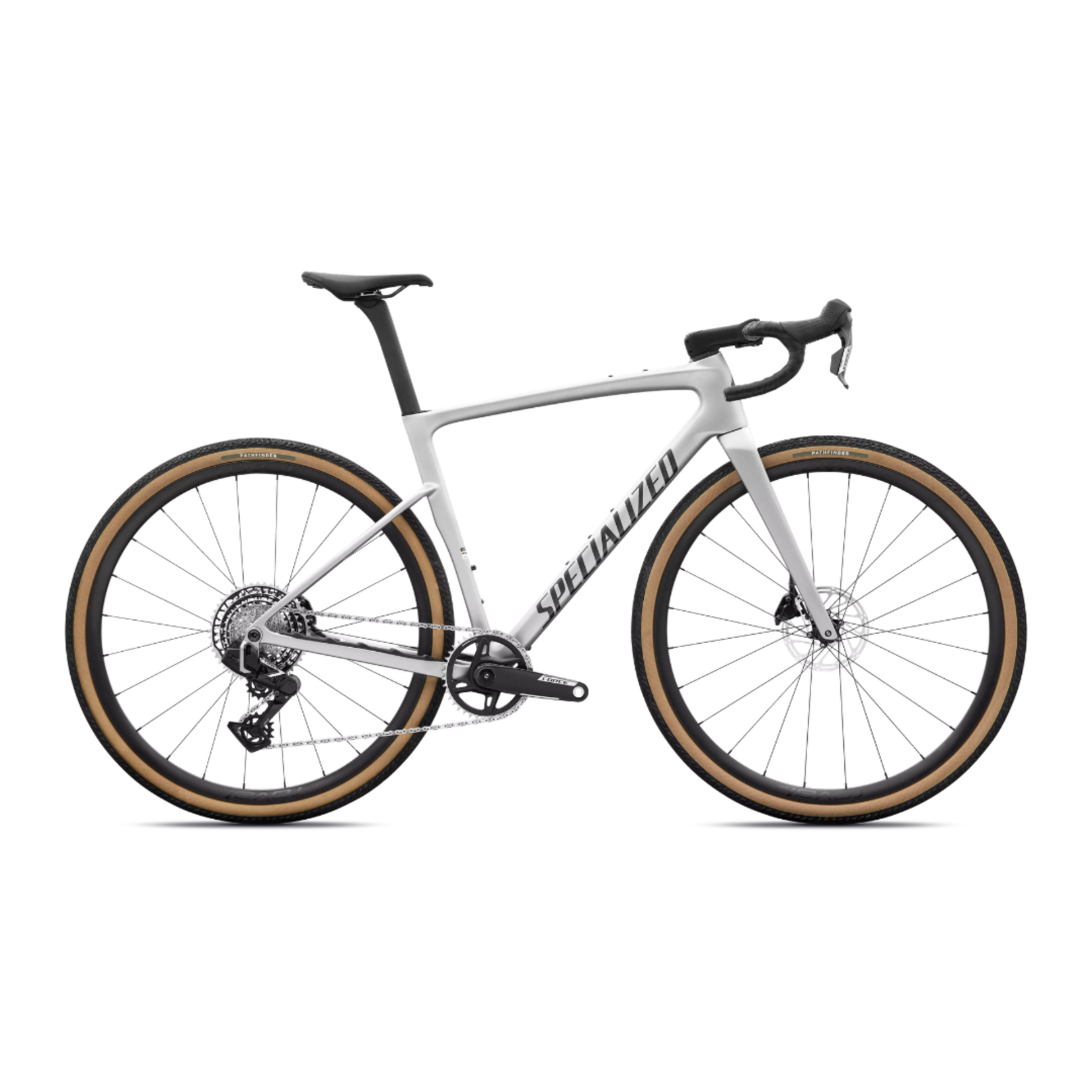

The Crux 5 was born from the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated for real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

Frame: Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Fork: S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc

Front Brake: SRAM Force E1, hydraulic disc

Rear Brake: SRAM Force E1, hydraulic disc

Bottom Bracket: SRAM DUB BSA 68 Wide

Rear Derailleur: SRAM Force AXS E1 XPLR, 13-speed

Shift Levers: SRAM Force AXS E1, hydraulic disc

Chain: SRAM Force E1

Cassette: SRAM Force E1 XPLR, 13-speed, 10-46t

Crankset: SRAM Force E1 XPLR, DUB Wide, 40t

Inner Tubes: 700x32-50mm, 40mm Presta valve

Front Wheel: Roval Terra C III, 27mm inner width carbon rim, tubeless ready, 25.5mm depth, DT 370 hub, 24h, Sapim D-Light spokes

Rear Wheel: Roval Terra C III, 27mm inner width carbon rim, tubeless ready, 25.5mm depth, DT 370 hub, 24h, Sapim D-Light spokes

Front Tire: Pathfinder 700x45, Tubeless Ready

Rear Tire: Pathfinder 700x45, Tubeless Ready

Saddle: Body Geometry Power Expert, hollow Ti rails

Seatpost: S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offsetStem: Roval Rapide, alloy, 4 bolt, -6 degrees

Handlebars: Roval Terra, carbon, 103mm drop x 70mm reach x 12º flareTape: Supacaz Super Sticky Kush

Seat Binder: Integrated Wedge

Weight Size- 56

Weight- 8.22 kg (18 lb, 2.0 oz)
