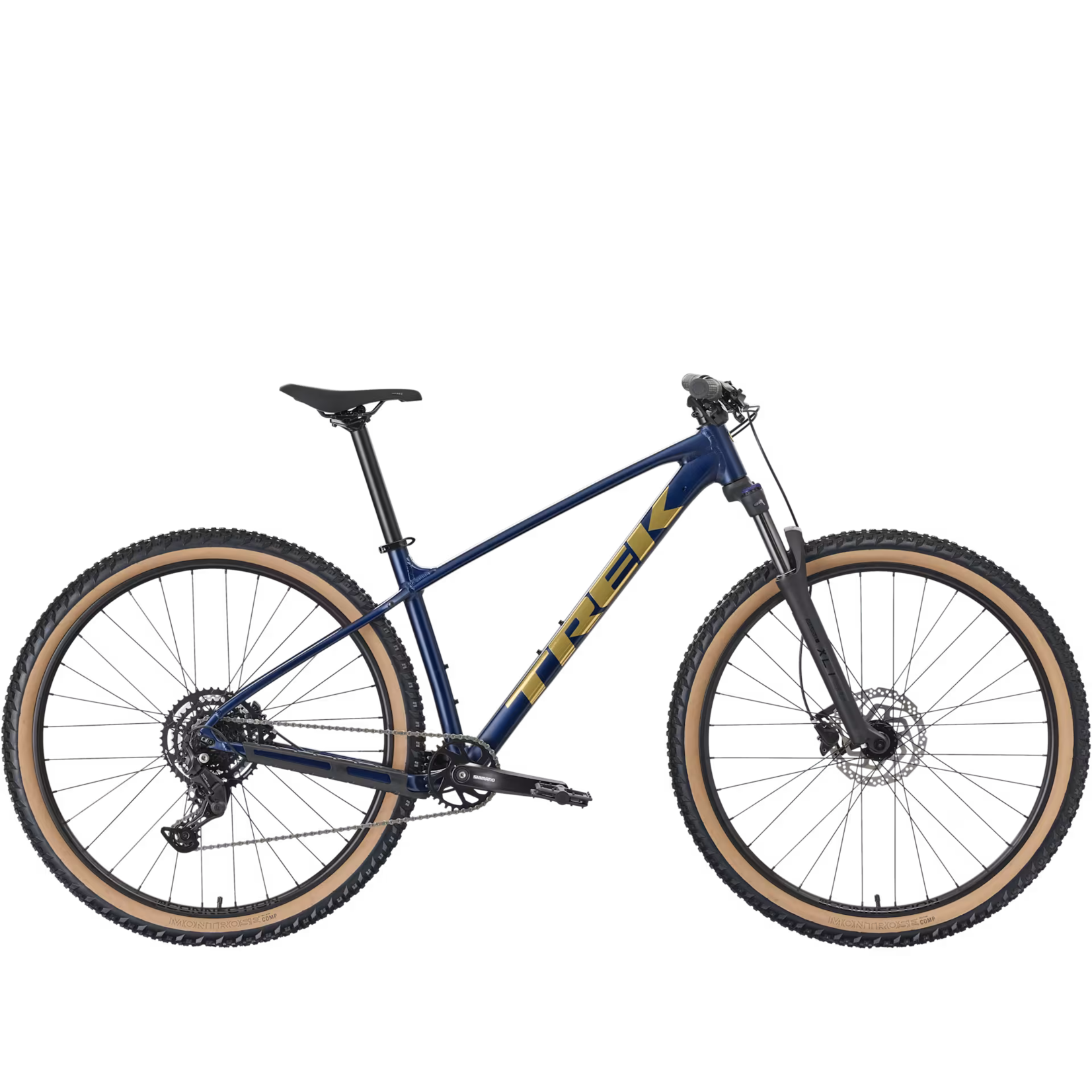

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting, and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

Frameset

*Frame

Size: XS - Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
Size: S , M , ML , L , XL , XXL - Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

*Fork

Size: XS - SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
Size: S - SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: M , ML , L , XL , XXL - SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Wheels

Hub front: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front: Trek Thru-Skew
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear: 173x5mm QR
Rim: Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Spokes: 14g stainless steel, black

*Tire

Size: XS , S - Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''
Size: M , ML , L , XL , XXL - Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4''

Drivetrain

Shifter: Shimano U4000, 9 speed
Rear derailleur: Shimano CUES U4000

*Crank

Size: XS , S , M , ML - Shimano CUES U4001, 32T, 52mm chainline, 170mm length
Size: L , XL , XXL - Shimano CUES U4001, 32T, 52mm chainline, 175mm length
Bottom bracket: Shimano, 73mm, threaded cartridge, 122.5mm spindle
Cassette: Shimano LINKGLIDE LG300, 11-46, 9 speed
Chain: Shimano LG500
Pedal: VP-536 nylon platform

Components

Saddle: Bontrager Verse Short, stainless steel rails
*Seatpost
Size: XS , S , M - Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: ML , L , XL , XXL - Bontrager alloy, 31.6mm, 12mm offset, 400mm length

*Handlebar

Size: XS - Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S - Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: M , ML , L , XL , XXL - Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips: Trek Line Comp, nylon lock-on

*Stem

Size: XS , S - Bontrager Comp, 31.8mm, 7 degree, 35mm length
Size: M , ML , L - Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: XL - Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: XXL - Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length
Headset: Semi-integrated, 1-1/8"
Brake: Shimano MT200 hydraulic disc

*Brake rotor

Size: XS , S , M , ML , L , XL , XXL - Shimano RT26, 6-bolt, 160mm
Size: M , ML , L , XL , XXL - Shimano RT26, 6-bolt, 180mm
Brake Set: Shimano MT200 hydraulic disc

Weight

Weight: M - 15.10 kg / 33.29 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
