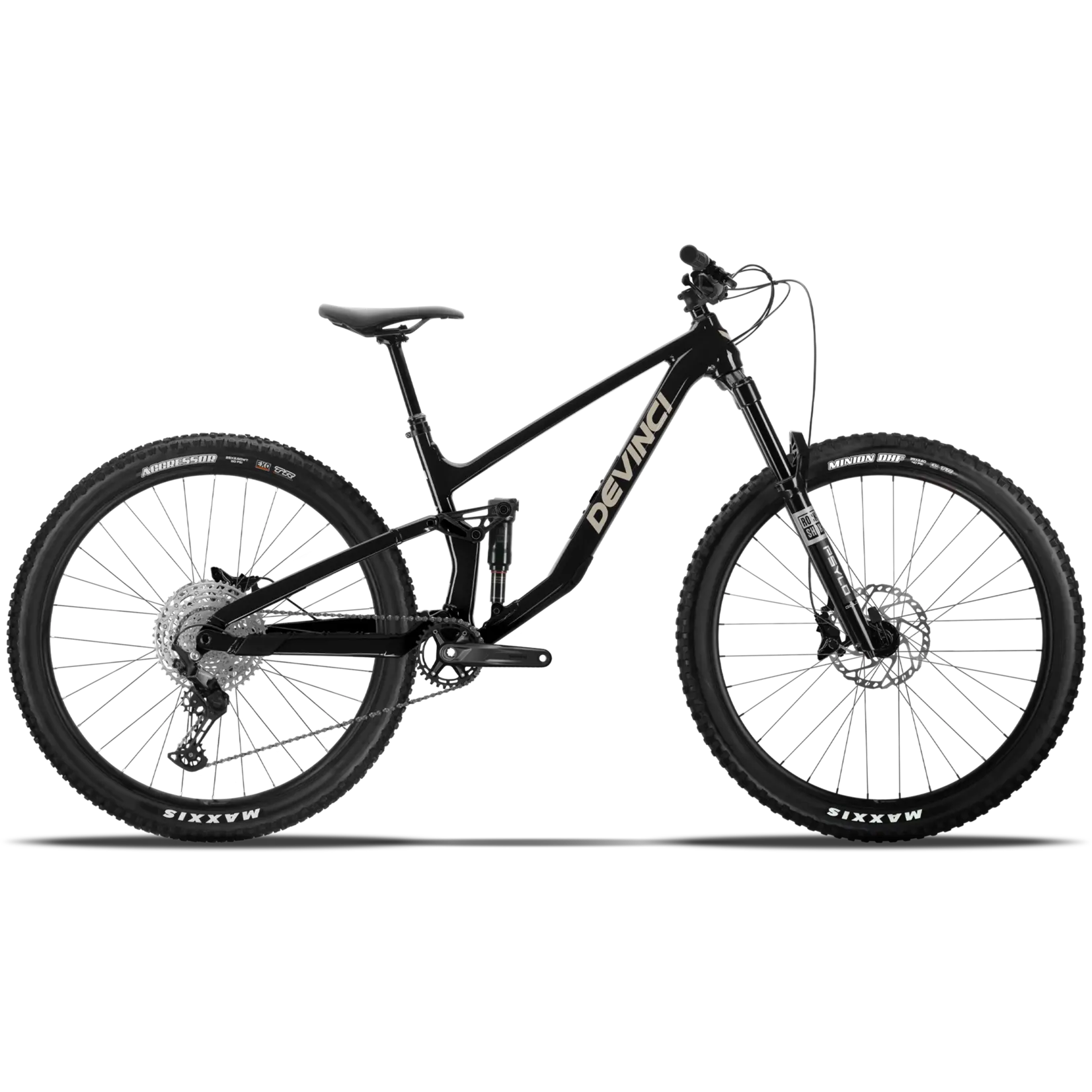

The new Troy ST is the black belt in the Troy family. Insanely agile, the 130mm travel Split Pivot frame has updated geometry with size-specific chainstays that will have you riding stuff you thought you wouldn’t, fast. Its integrated downtube storage and go get ‘em attitude will lure you into all day rides on “once a year” trails, weekly. Full 29 in M-XL sizes and full 27.5 in XS-S, the ST isn’t trying to be anything it’s not. It’s made in Canada, guaranteed for life and ready to rumble. This bike is proof that with travel, sometimes less is more.
- FRAMEAluminum Optimum G04 130mm
- HEADSETFSA Orbit | 1.5 | Zero Stack
- SEAT CLAMPAlloy CNC | 34.9mm
- SUSPENSION FORKRockShox Psylo Silver RC | 140mm | 44Offset | 1 Token
- REAR SHOCKRockShox Deluxe Select 185x47.5 Trunnion
- HANDLEBARV2 Pro | B:35mm | R:30mm | W:800mm
- SADDLEDevinci
- SEATPOSTTranzX Dropper | 31.6mm
- SEATPOST LEVERTranzX
- GRIPSDevinci | w/lock-on
- FRONT BRAKEShimano Deore M4100/MT410 | 2 Pistons
- REAR BRAKEShimano Deore M4100/MT410 | 2 Pistons
- FRONT ROTORShimano RT66 | 203mm
- REAR ROTORShimano RT66 | 203mm
- REAR DERAILLEURShimano Deore M6100 | 12s
- REAR SHIFTERShimano Deore M6100 | 12s | I-spec EV
- CRANKSETShimano MT5121 | 32T | 170mm
- BOTTOM BRACKETShimano BB MT501 | BSA | 68/73mm
- CASSETTEShimano Deore M6100 | 12s | 10-51T | Microspline
- CHAINKMC X12 | 12s
- FRONT RIMV2 Comp 29 | 29mm inner | TR
- FRONT HUBFormula DC-611 | Sealed | 6bolts | TA 15x110mm
- REAR HUBFormula MST-148 | Sealed | 6bolts | TA12x148mm | Microspline
- REAR RIMV2 Comp 29 | 29mm inner | TR
- SPOKESSapim Stainless 14G w/Nylok
- FRONT TIREMaxxis Minion DHF | 29x2.5 | 3C | Exo | TR | MaxTerra
- REAR TIREMaxxis Aggressor | 29x2.5 | EXO | TR | Dual Compound
Weight: 16.85 kg / 37.15 lb*
*For a size medium complete bike, weight approximate and subject to change.
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.
