Ride-All-Day Geometry

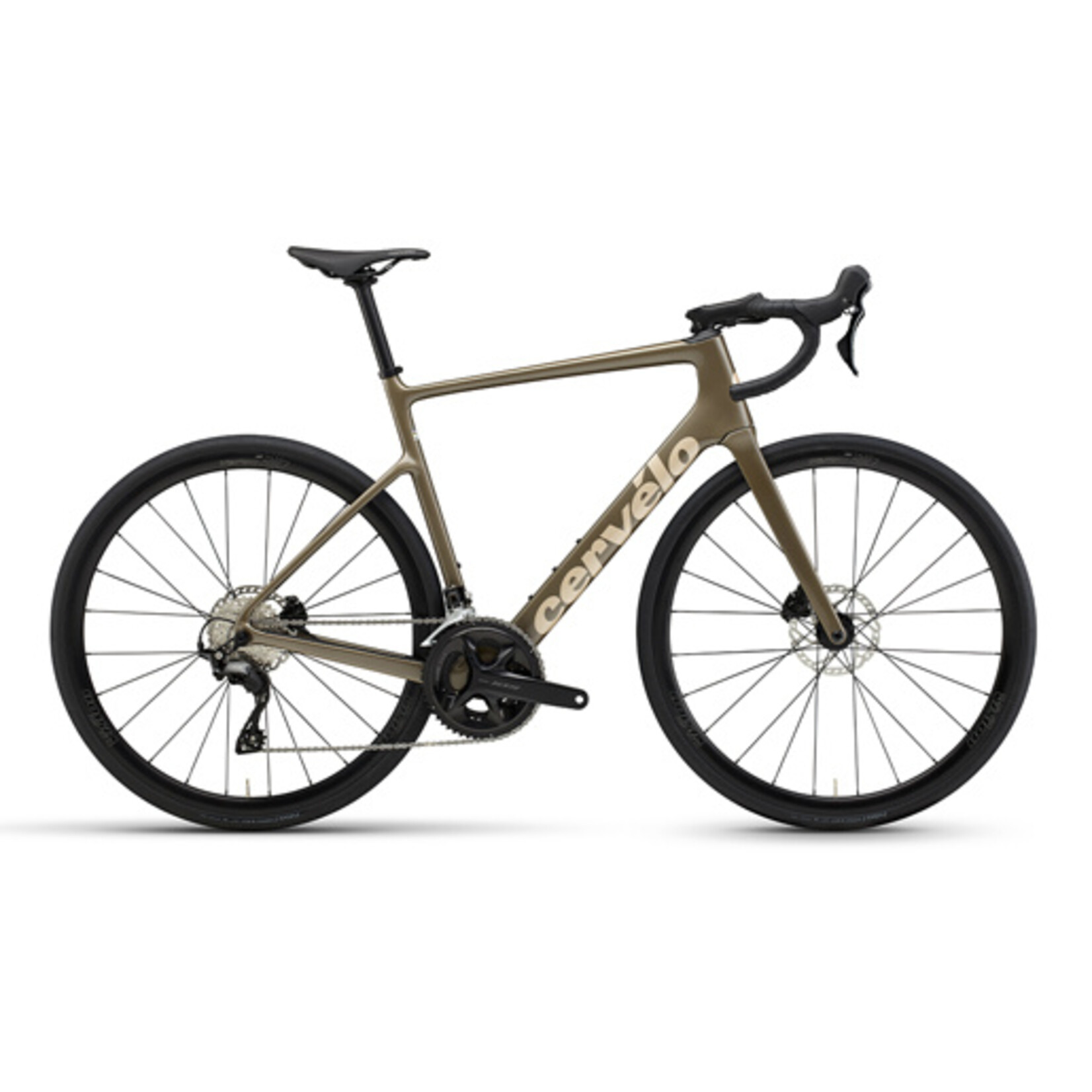

With a 1013mm wheelbase, 415mm chainstays, and 72° head tube angle, the Caledonia delivers stable and predictable handling suitable for both casual riders and those hunting fondo and brevet glory. We also updated the trail figure to optimize the geometry for 32mm-wide tires.
Build Specs
- Fork: Cervélo All-Carbon, Tapered Caledonia Fork
- Shifters: Shimano 105, R7120
- Crankset: Shimano 105, R7100, 52/36T
- Bottom Bracket: FSA, T47 BBright for 24mm spindle
- Headset: FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°
- Bars: Cervélo HB23 alloy 400mm
- Stem: Cervélo ST36 Alloy
- Saddle: Cervélo Saddle
- Handlebar Sizing: 48cm - 38cm 51cm - 38cm 54cm - 40cm 56cm - 40cm 58cm - 42cm 61cm - 42cm
- Stem Sizing: Size 48 - 80mm Size 51 - 90mm Size 54 - 100mm Size 56 - 100mm Size 58 - 110mm Size 61 - 110mm
- Seatpost: Cervélo Alloy 27.2
- Seatpost Sizing: Size 48 - 0mm Size 51 - 0mm Size 54 - 0mm Size 56 - 0mm Size 58 - 15mm Size 61 - 15mm
- Front Thru Axle: Cervélo Aero Thru Axle Front, M12x1.5mm, 127mm length
- Rear Thru Axle: Cervélo Aero Thru Axle Rear, M12x1.5mm, 170.5mm length
- Front Wheel: Vision Team i23 Disc, 23mm IW, J-Bend, 12x100mm, 6 bolt, tubeless compatible
- Rear Wheel: Vision Team i23 Disc, 23mm IW, J-Bend, 12x142mm, HG freehub, 6 bolt, tubeless compatible
- Tires: Vittoria Corsa N.EXT TLR G2.0 700x32c
