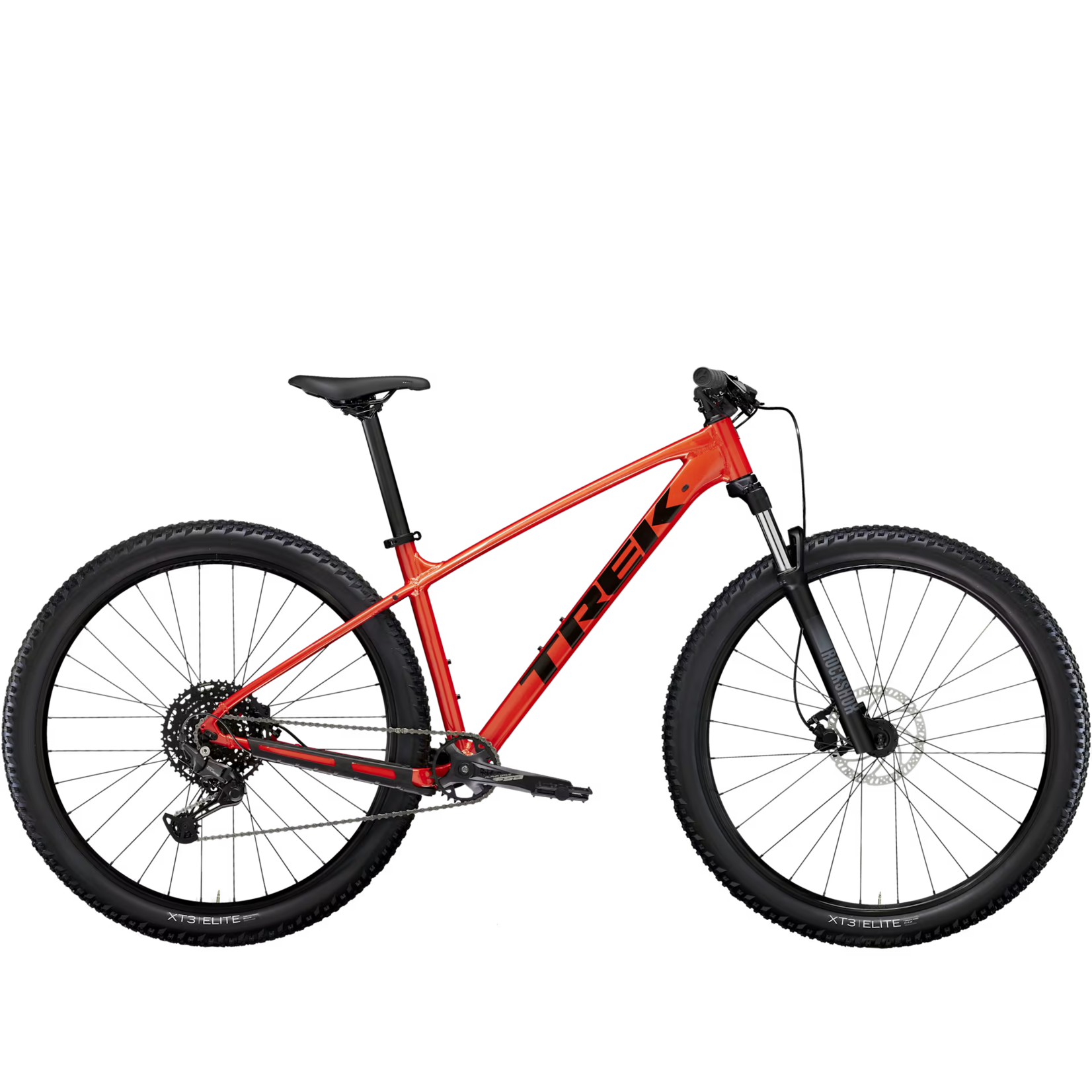

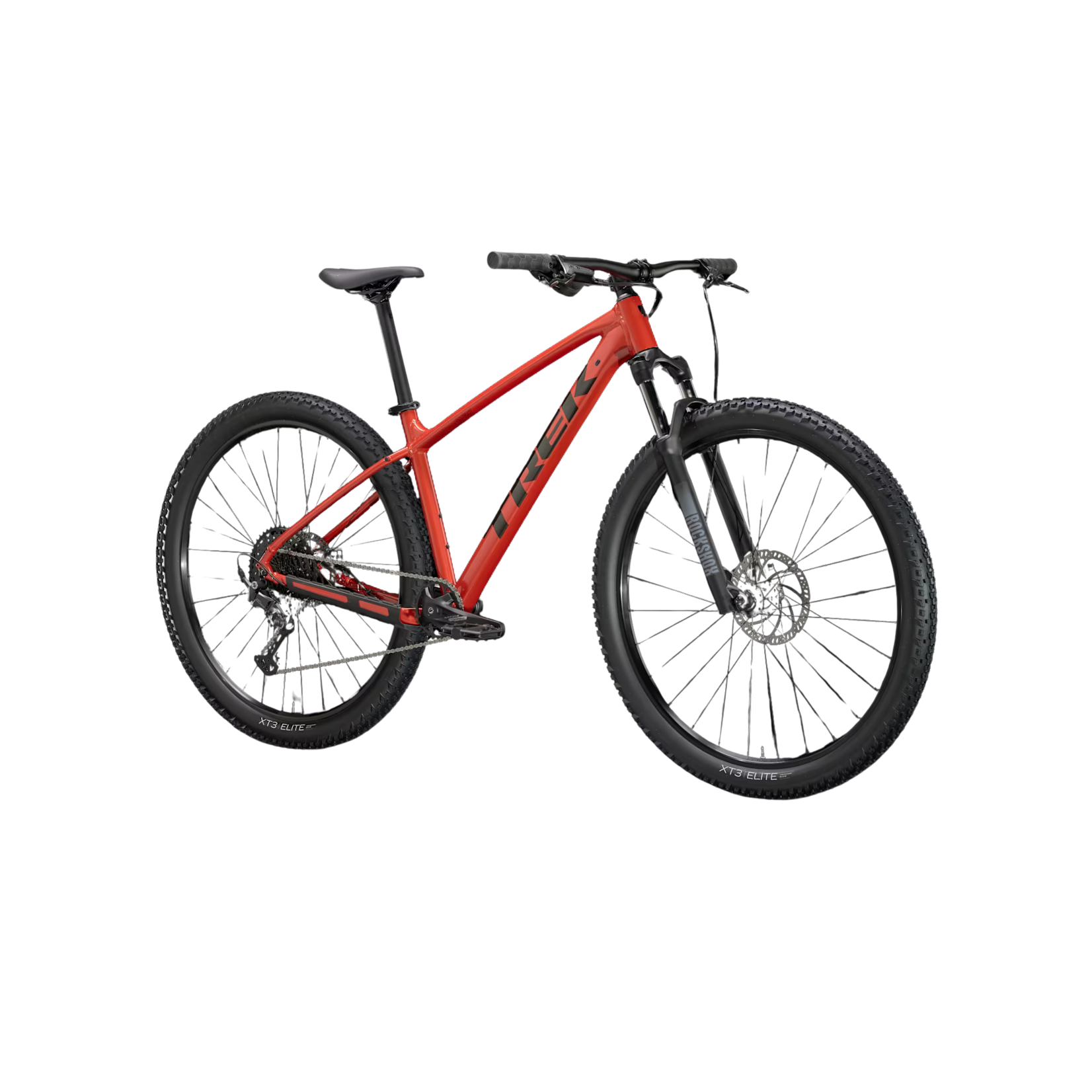

Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the upgraded suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.

Frameset

*Frame

Size: XXS , XS - Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
Size: S , M , ML , L , XL , XXL - Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

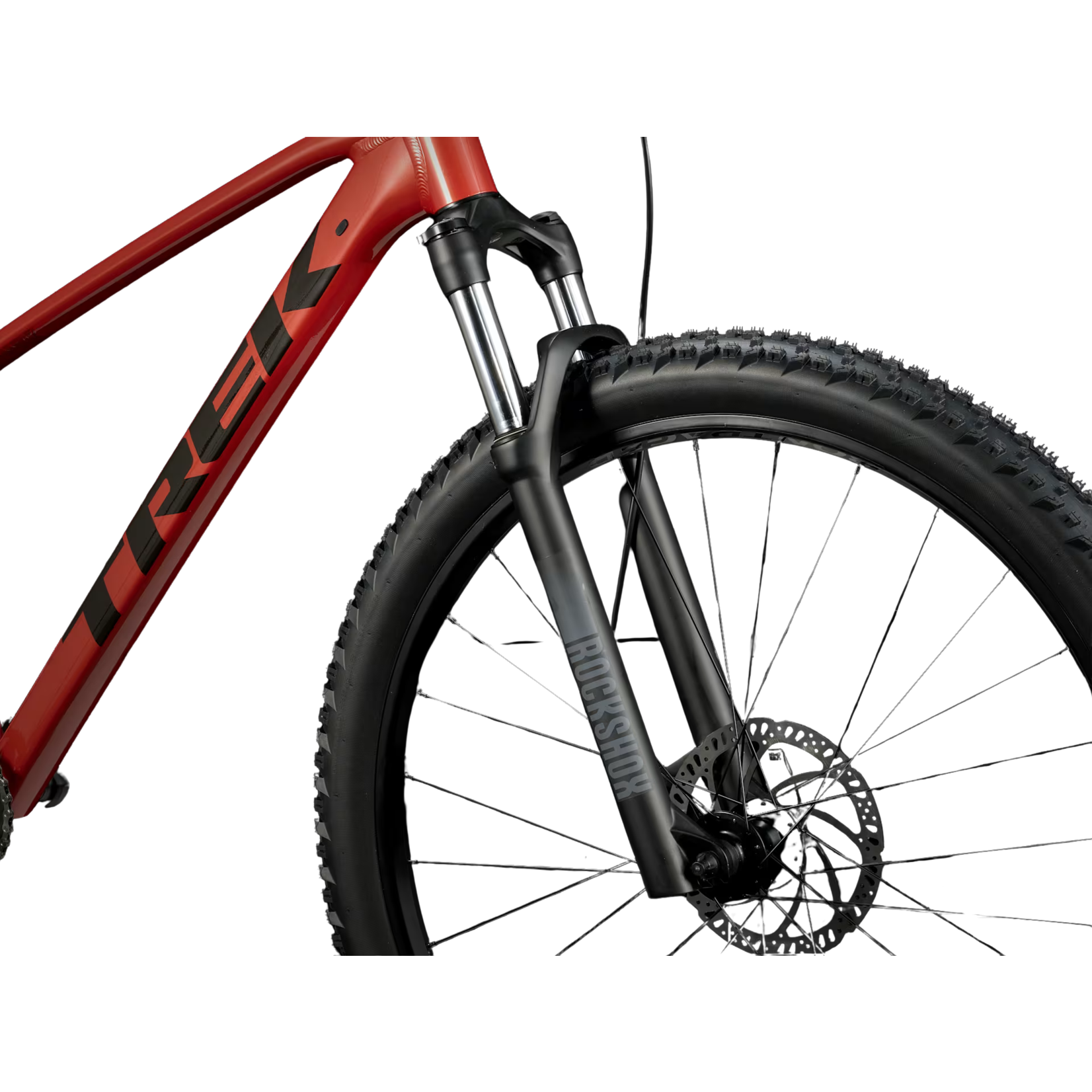

*Fork

Size: XXS - RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
Size: XS , S - RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Size: M , ML , L , XL , XXL - RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel

Wheels

Hub front: Formula DC-20, alloy, 6-bolt, 100 mm

*Hub rear

Size: XXS , XS , S - Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Size: M , ML , L , XL , XXL - Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear: 173x5mm QR
Rim: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve

*Tire

Size: XXS - Bontrager XT3 Elite, Tubeless Ready, Inner Strength casing, wire bead, 60 tpi, 26x2.35''
Size: XS , S - Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.35"
Size: XS , S - Maxxis IKON, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.35''
Size: M , ML , L , XL , XXL - Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.35"
Size: M , ML , L , XL - Maxxis IKON, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.35''
Max tire size: Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer

Drivetrain

Shifter: Shimano U6000, 10 speed

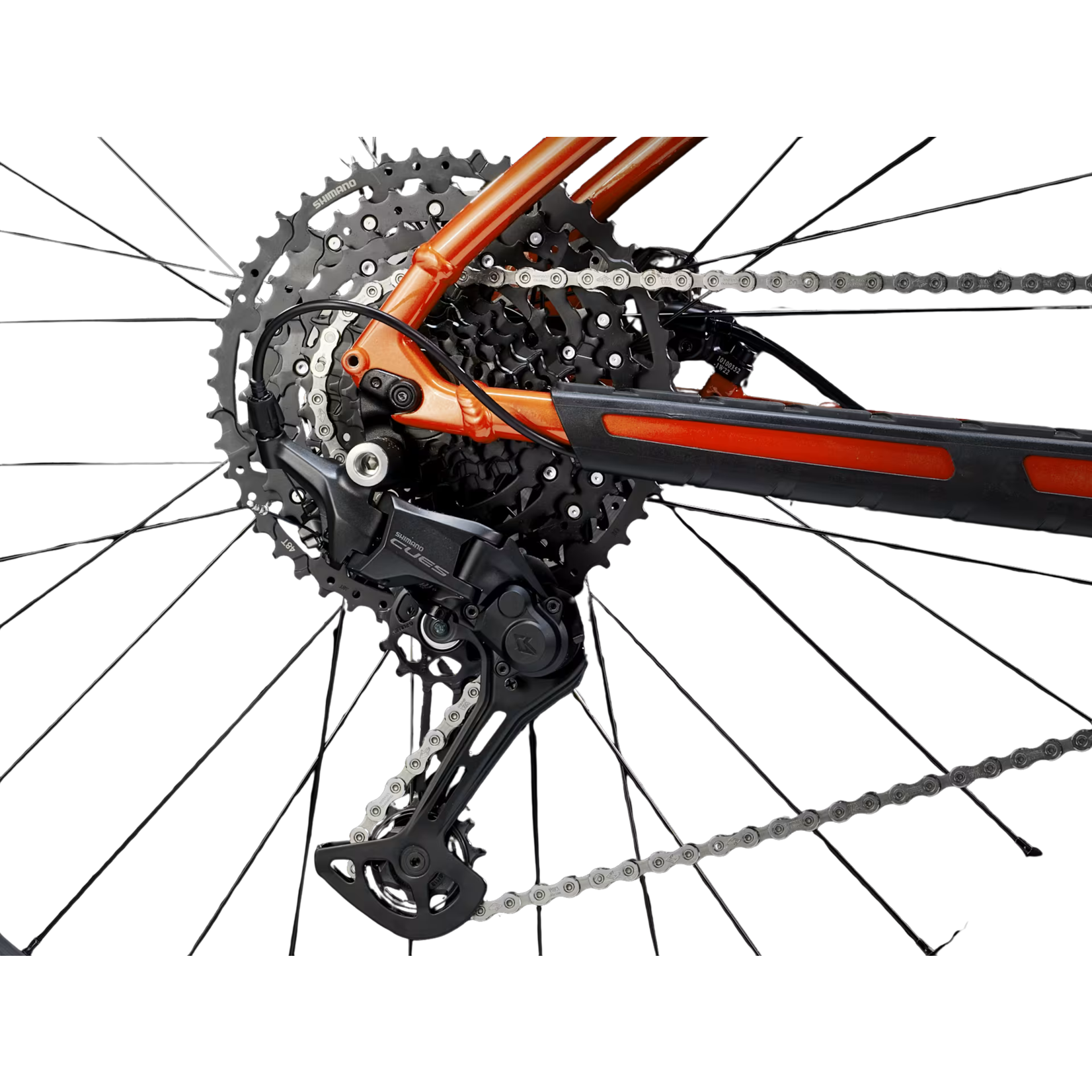

Rear derailleur: Shimano CUES U6000 GS

*Crank

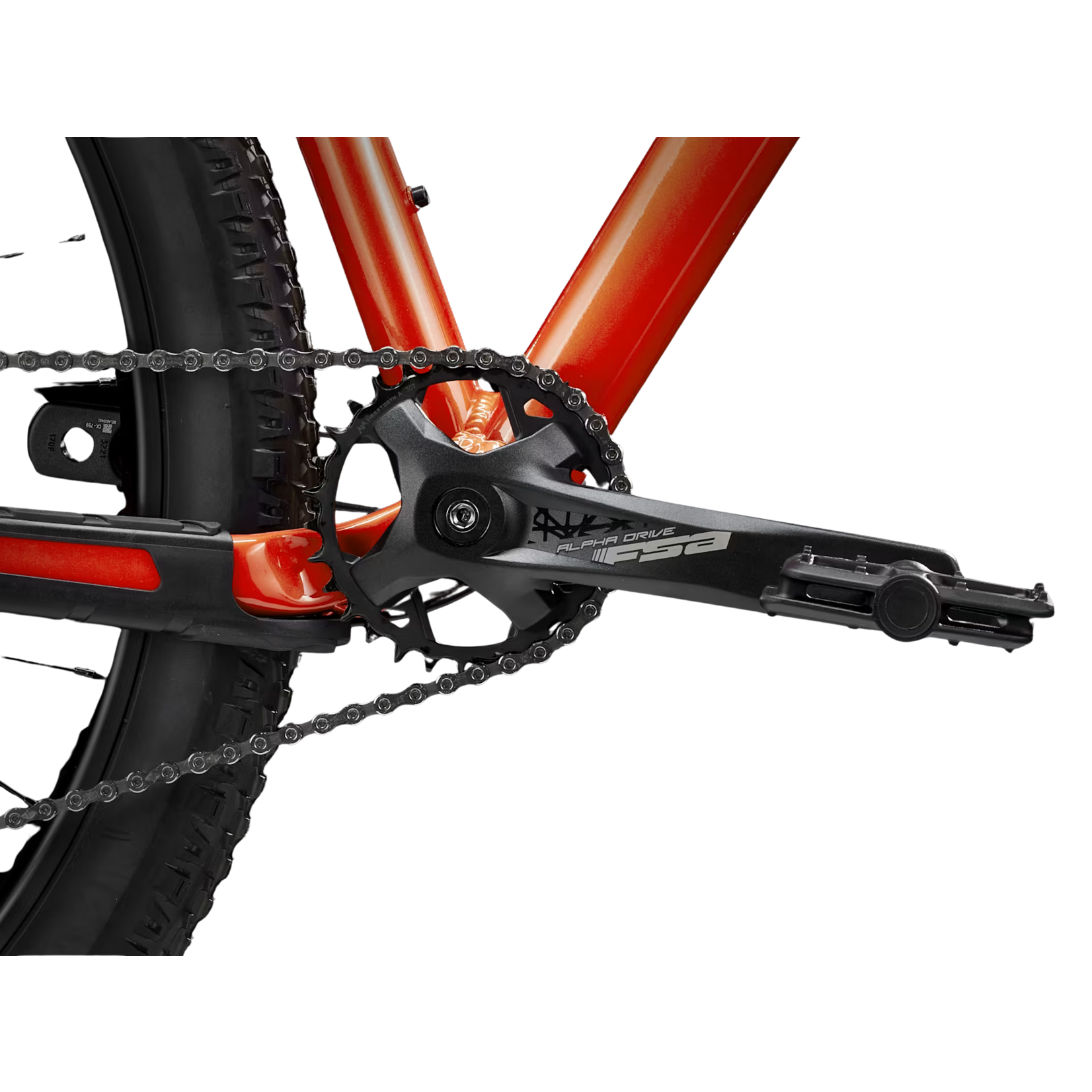

Size: XXS , XS - FSA Alpha Drive, 30T, 160mm length
Size: S , M , ML - FSA Alpha Drive, 30T, 170mm length
Size: L , XL , XXL - FSA Alpha Drive, 30T, 175mm length
Bottom bracket: FSA, 73 mm, threaded cartridge, 122.5 mm spindle
Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
Chain: Shimano LG500
Pedal: VP-536 nylon platform
Max chainring size - 1x: See FAQ, 2x: 36T, 3x: 42T

Components

Saddle: Bontrager Verse Short, stainless steel rails

*Seatpost

Size: XXS - Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length
Size: XS , S , M - Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: ML , L , XL , XXL - Bontrager alloy, 31.6mm, 12mm offset, 400mm length

*Handlebar

Size: XXS , XS - Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S - Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: M , ML , L , XL , XXL - Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips: Bontrager XR Trail Comp, nylon lock-on

*Stem

Size: XXS , XS , S - Bontrager Comp, 31.8mm, 7 degree, 35mm length
Size: M , ML , L - Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: XL - Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: XXL - Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length
Headset: Semi-integrated, 1-1/8"
Brake rotor: Tektro, 6-bolt, 160mm

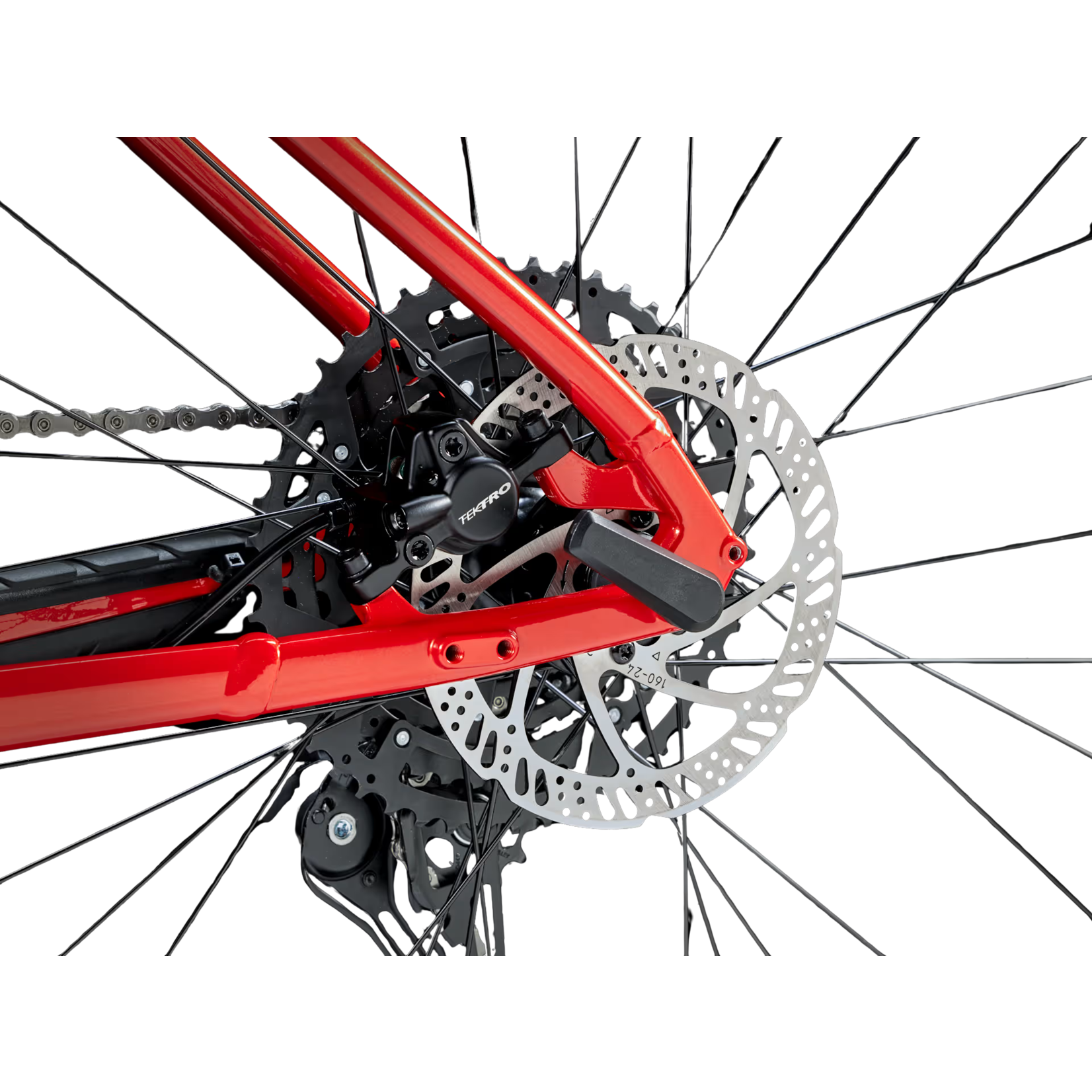

*Brake Set

Size: XXS , XS , S - Tektro HD-M276 hydraulic disc, short reach
Size: M , ML , L , XL , XXL - Tektro HD-M275 hydraulic discRotor size
Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer

Weight

Weight: M - 14.50 kg / 31.97 lbs (with tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
